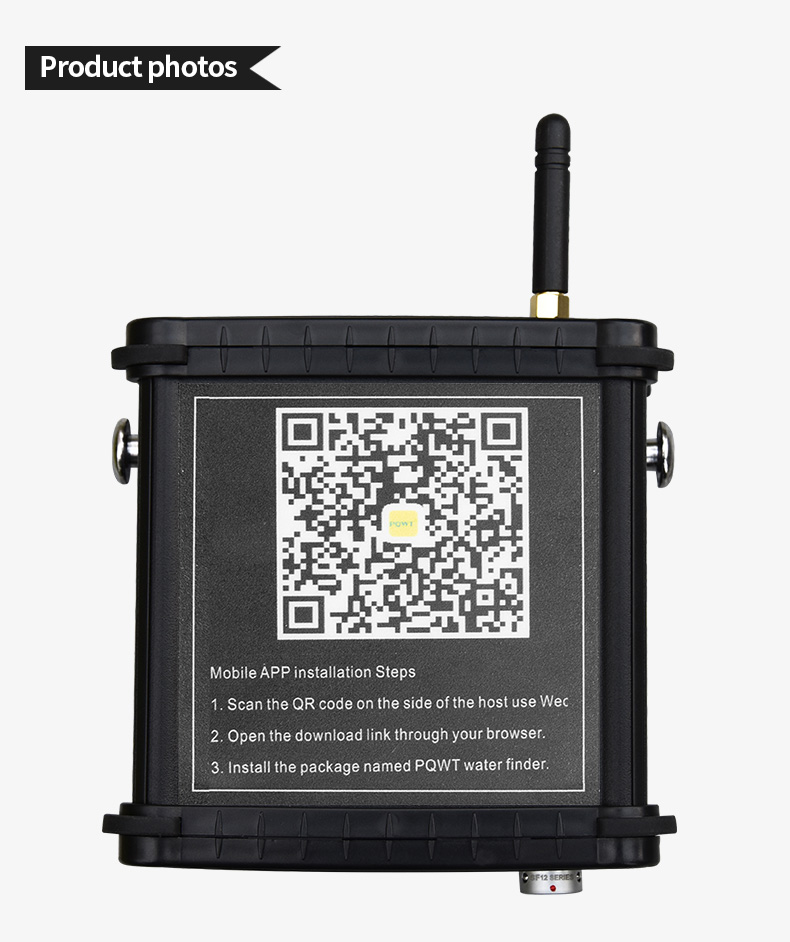

PQWT-M100.100M Water Detector drilling water well tools

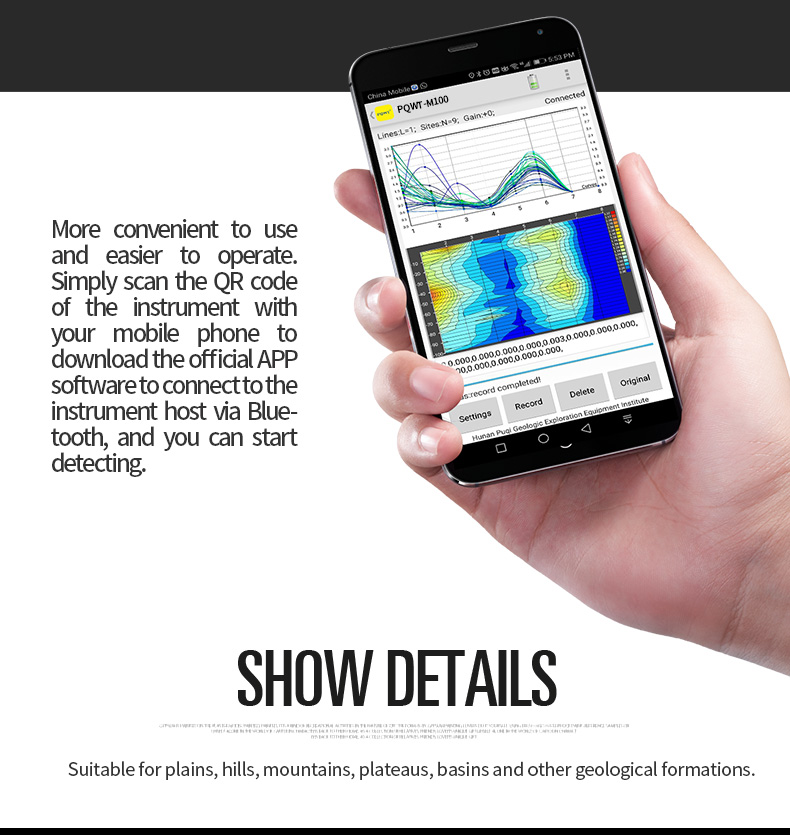

PQWT-M100.100M mobile water detector is based on the Earth's electromagnetic field as the field source, based on the difference in the conductivity of different underground geological structures, and by studying the variation law of the electric field components at different frequencies to study the geological structure and changes, to find groundwater resources by scientific method. Changes in geological structure are displayed in real-time through multiple curves. Automatic form mapping geological profile by one key operate easily, get rid of complicated computer graphics. The site can quickly understand the geological structure through the automatic mapping curve and profile, and analyze specific information such as aquifers, fractures, faults, and caves. The instrument is widely used in the rapid analysis of geological structure changes in different terrains such as plains, hills, mountains, plateaus, and basins to determine well locations, aquifers, and aquifer depth.

  • PQWT-M100
  • PQWT
  • 9015800090
Color:
Bluetooth:
Stock:
Warranty:
Quantity:

1. No need to register

2. No need network, no need traffic

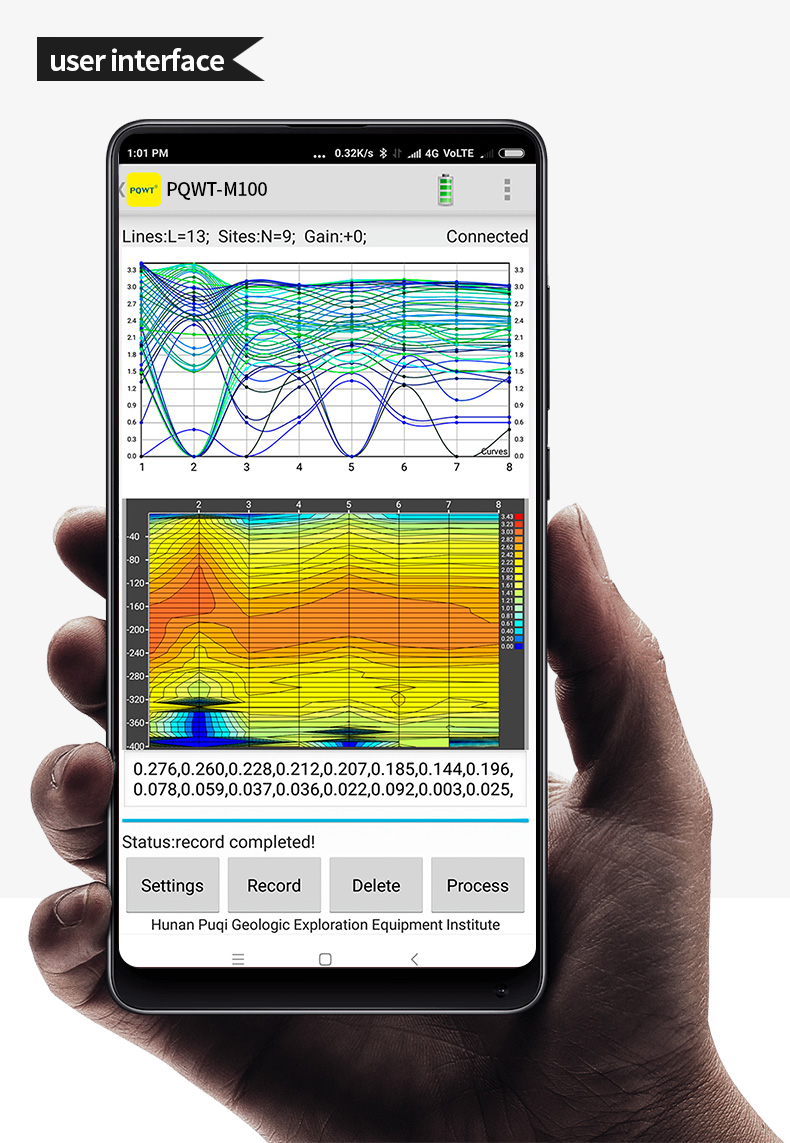

3. Automatically draw geological profile map

4. Suitable for various terrain exploration

5. Expert remote assistance to find location

6. No experience person can operate in 5 minutes

7. Two years warranty.

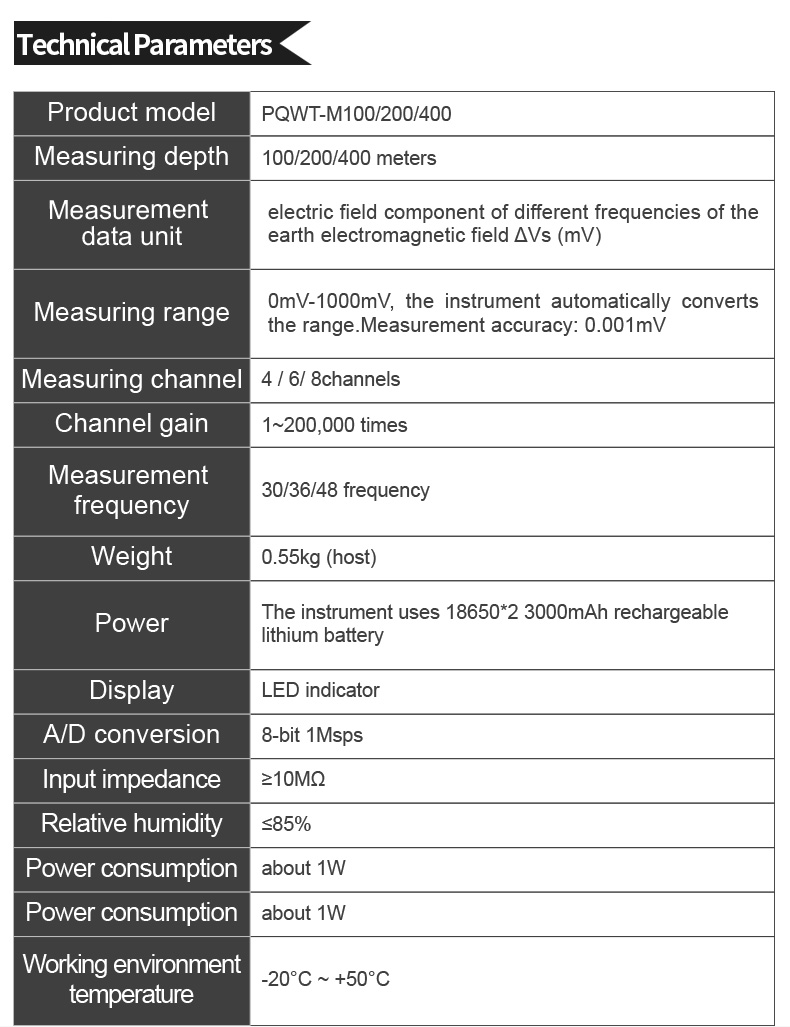

Model

PQWT-M100

Depth

100 Meters

Frequency

Single, Triple, 30frequency

Measurement data unit

electric field component of different frequencies of the earth electromagnetic field ΔVs (mV)

Channel

4

System

PQWT

LCD

Industrial 7-inch HD touch screen

Units of Measurement

△Vs(mV)

Measurement Range

0mV-1000mV

Display

LED indicator

A/D conversion

8-bit 1Msps

Input impedance

≥10MΩ

Relative humidity

≤85%

Power consumption

about 1W

Working environment temperature

-20°C ~ +50°C

Power Supply

Battery Model #18650; 3000mAh Rechargeable lithium battery
