How to Find Water Pipe Leaks



Understanding Acoustic Leak Detection


What are the Sounds of Water Leaks?


Water leaks in underground, pressurized pipes may make many different sounds:


“Hiss” or “Whoosh” from pipe vibration and orifice pressure reduction

“Splashing” or “Babbling Brook” sounds from water flowing around the pipe

Rapid “beating/thumping” sounds from water spray striking the wall of the soil cavity

Small “clinking” sounds of stones and pebbles bouncing off the pipe

The “Hiss” or “Whoosh” sound, which often sounds like constant static noise, is the only one which is always present for leaks in pipes with 30 psi or higher water pressure. The other sounds may or may not be present, and usually they are not as loud. So, we decide “Is there a leak?” by listening for the “Hiss” or “Whoosh.”

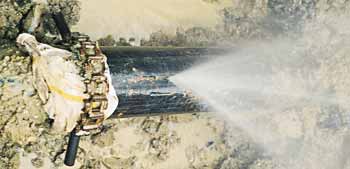

Small Leak on Cast Iron Water Main


What Factors Affect These Sounds?


There are several factors that affect the loudness and the frequency range of the sounds made by water leaks transmitted on the pipes and transmitted to the surface of the ground:


Water pressure in the pipe

Pipe material and pipe diameter

Soil type and soil compaction

Depth of soil over the pipe

Surface cover: grass, loose soil, asphalt, concrete slab, etc.

The loudness or intensity of the leak sound is directly proportional to the water pressure inside the pipe (up to a limit):


Sound Intensity (loudness) vs. Water Pressure


Metal pipes, such as iron mains, copper services, and steel pipes, transmit water leak sounds that are louder and higher frequency than do PVC pipes or asbestos-cement pipes. Thus, knowledge of the pipe material is important.


Large diameter pipes, whether they are PVC, concrete, steel, or iron, transmit much less sound from water leaks than small diameter pipes. And, large diameter pipes transmit lower frequency sounds than small diameter pipes.


Sandy soil and very loose soils, particularly over a freshly buried pipe line, do not transmit the sounds of water leaks very well, nor do water saturated soils such as bogs and swamps. Hard, compacted soil transmits the sounds of water leaks best. Soil absorbs the sounds of water leaks very quickly. Leaks in water lines that are only 3 or 4 feet deep are much easier to hear at the ground’s surface than leaks in deeper lines. At 7 or 8 feet deep, only very large leaks with good water pressure will produce enough noise to be heard at the surface.


Finally, the ground cover, whether it is an asphalt street, loose dirt, concrete slab, or grass lawn, also makes an important difference. Hard street surfaces and concrete slabs resonate with the sounds of the water leak, and the leak may be heard for 5 to 10 feet or more on either side of the water pipe. Grass lawns and loose dirt surfaces do not offer such a resonating plate-like surface, and their surface variations make firm contact more difficult.


How Do Leak Sounds Travel on Pipes?

Metal pipes, particularly iron mains between 6 inches and 12 inches, copper services, and steel pipes transmit the sounds of water leaks for hundreds of feet in every direction. Asbestos-cement pipe and PVC pipe do not transmit the sounds nearly as far.

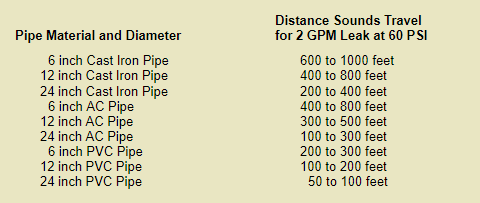

Distances transmitted for the “Hiss” or “Whoosh” sounds of water leaks are a function of the pipe diameter as well as the pipe material:



Thus knowledge of the pipe material and diameter is important to knowing how far the leak sound may be transmitted along the pipe walls.


How Do Leak Sounds Travel Through Soil?

Soil absorbs water leak sounds very quickly:



Soil absorbs the high frequencies to a greater degree than the low frequencies. For a leak in a pipe 6 ft deep, the “Hiss” or the “Whoosh” sound is weak and “muted,” i.e. only the lower frequencies are heard. For a leak in a pipe 3 ft deep, the sound is louder and slightly higher in frequency.





Surveying

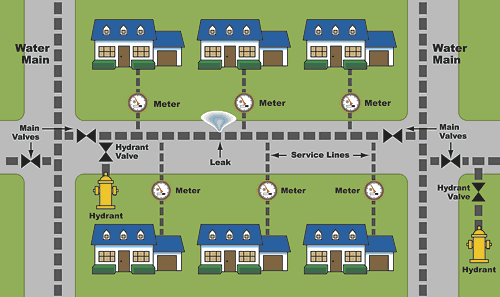

“Surveying” is the term applied to listening for water leaks when there is no obvious evidence, like water flowing on the street. Every hydrant, valve, and service line is a possible location to hear the sounds of water leaks:



Since the sounds travel on the pipe walls better than through the soil, always listen at the hydrants, valves, and meters first. As you get closer to the leak, the sound gets louder. Finally, decide which two of these locations are the loudest. Now you are ready for “Water Leak Pinpointing.”


Surveying by PQWT water leak detector at a Service Line:





Pinpointing


“Water Leak Pinpointing” is the term applied to the process of pinpointing the exact leak location. For Acoustic Leak Detection, the exact leak location is usually the spot where the leak sounds are the loudest:




To find this spot, the listener must carefully mark the location of the water line on the street after locating it exactly with a pipe and cable locator. Usually, the piping between the valve or hydrant with the loudest sound and the valve or hydrant with the second loudest sound is the section of the line that needs to be marked. The section must be accurately located and marked on the street in order for the listener to consistently listen directly over the pipe.


The listener moves the ground microphone 3 to 4 feet each time in the direction of the water line, listening, and moving closer to the water leak. While the listener is moving, he does not adjust the volume control, since the volume control must be held constant in order to make accurate comparisons. When the listener is very close to the leak, it may be impossible to decide based upon the user’s hearing alone whether the leak is in one spot or in a spot 3 to 4 feet away. When this occurs, the listener must study the visible display (meter) to see if the signal is slightly stronger at one location than at another location.







The loudness of a leak heard on an asphalt street or a concrete slab depends upon the size of the leak, water pressure, and depth of the pipe. Hard, dry materials like asphalt, concrete, rock, and compacted soil transmit sounds better than wet clay, sand, or loose soil. The sounds travel further on iron and steel pipes than on PVC pipes or Poly pipes.
