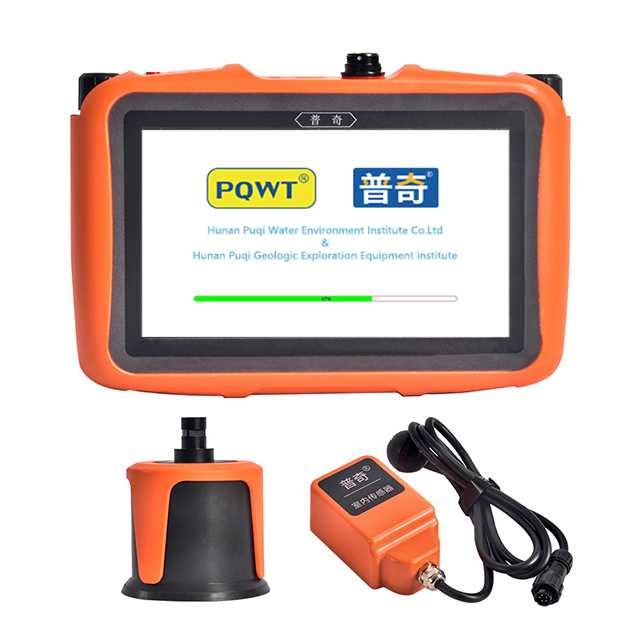

PQWT-L3000 Multi-Sensor Water Pipeline Leak Detector

PQWT-L3000 Pipe Leak Detector, design for indoor or outdoor underground and walls pipeline leakage detection.
Sensor: Middle Sensor, Square Sensor
Detection Depth: Middle Sensor: 5m (195 inch); Square Sensor: 50cm (20 inch)
Headphones: High Frequency Noise Canceling Headphones
Application: Indoor and Outdoor Underground and Walls Pipeline
Working Principle: By collecting and analyzing the leakage signal, pinpointing the leakage on the pressure pipelines.
  • PQWT-L3000

  • PQWT

  • 9031809090

Availability:
Quantity:

PQWT-Multi-Sensors Water Pipeline Leak Detector

Production

PQWT-L Multi-Sensor Water Pipeline Leak detector is the latest generation of intelligent water leak detector independently developed by Hunan Puqi Geologic Exploration Equipment Institute, This device is equipped with a triangle sensor, square sensor, medium sensor and large sensor. It is suitable for water leakage detection of outdoor water pipe, fire pipe, heating system, indoor water pipe, and underground heating floor pipe. By collecting and analyzing leakage signal, it solves the problem of pressure pipe water leak.


Working Principle

PQWT-L Multi-Sensor Water Pipeline Leak detector collects leaking sound signal through its sensor, collected signal will be processed by host machine and displayed on the host machine screen in the form of visual spectrum and signal bars. At the same time, the sound will also be output to its earphone through the host machine. Water leakage point can be found out easily through the combination of "listening to the abnormal sound" and "observing the abnormal signal bars”

L3000详情_01

L

1. Strap buckle

2. USB Charge interface(5V) : used for host machine charging and computer connection

3. SD card interface: for system upgrade

4. Five-core air plug: used to connect the sensor

5. USB interface: expansion interface

6. Headphone jack: used to connect headphone

7. Reset button: Host system reset, shutdown

8. Microphone: used when recording human voice

9. Indicator: switch indicator and charge indicator

10. Switch button: for host machine on/off

12. Right knob switch: clockwise volume +, counterclockwise volume -, press to turn on/off sound

13. Left knob switch: clockwise gain +, counterclockwise gain -, press to turn on/off sound

 Technical parameters.


Model

PQWT-L2000

PQWT-L3000

PQWT-L4000

PQWT-L5000

PQWT-L6000

PQWT-L7000

Measuring area

Outdoor Pipeline

Indoor+outdoor pipeline

Indoor+outdoor pipeline

Indoor+outdoor pipeline

Outdoor Pipeline

Indoor+outdoor pipeline

Sensor

Middle Sensor

Middle +Square Sensor

Middle + Triangular Sensor

Middle+ Triangular +Square Sensor

Middle+ Large Sensor

Large+Middle+ Triangular +Square Sensor

Frequency Range

1-10000HZ

Gain

10 levels adjustable

Volume

10 levels adjustable

Operating Mode

General Detection;  Locating Mode

Display

7 Inch HD digital touch LCD screen

Charting hours

7-8 hours

Working hours

15 hours

Charger

5V 2A USB

Languages

English. Spanish, French, Arabic, Turkish, Italian

Input Power

Around 2w

Working temperature

 ( -20℃~ +50℃ )

Weight (Host Machine)

0.7Kg

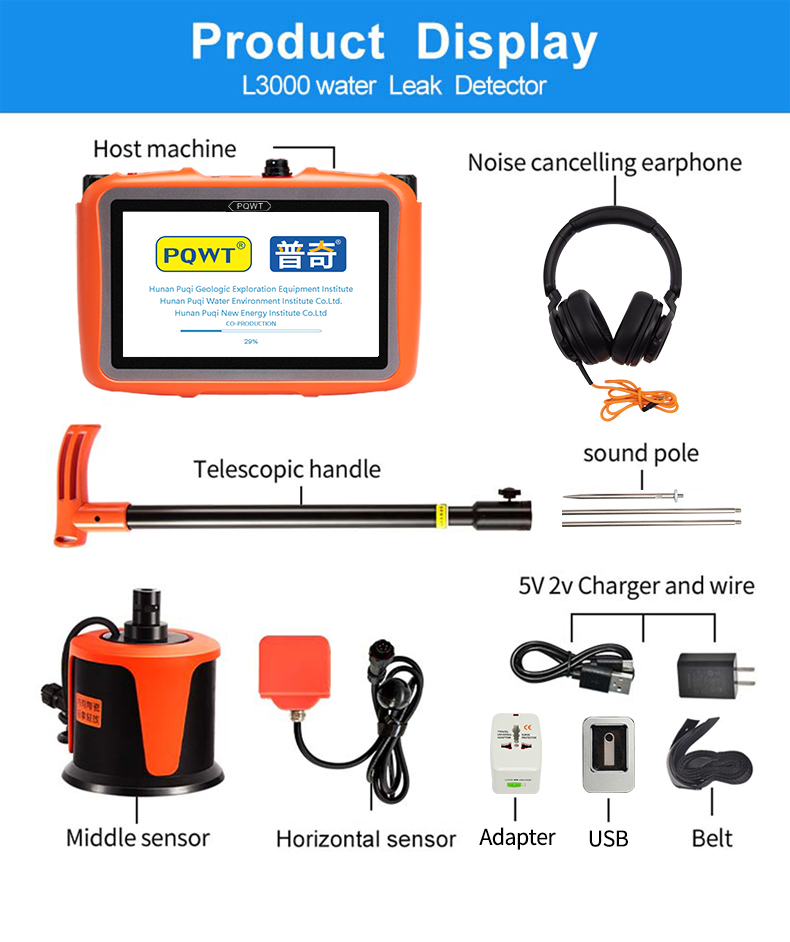

L3000详情_02L3000详情_03L3000详情_04L3000详情_05L3000详情_06

L3000详情_07

L3000详情_08
