Analysis of the main functions of the pipeline leakage listening instrument

Views: 15     Author: pqwt     Publish Time: 2023-10-20      Origin: PQWT


In modern pipeline maintenance and management, pipeline leakage hearer has become a very important tool. In this paper, we will introduce the pipeline water leakage audiometer from the definition, scope of application and other aspects, and its main functions are analyzed in depth.


First, the pipeline water leakage listening instrument introduction


Pipeline water leakage listening instrument is a kind of instrument specially used for detecting pipeline water leakage point. It can quickly and accurately locate the pipe leakage position by collecting and analyzing the noise and vibration data inside the pipe. The instrument is suitable for pipes made of various materials, such as metal, plastic, etc. It is widely used in water supply network, gas pipeline, industrial pipeline and other scenarios.


Second, the main function of the pipeline water leakage listening to leakage instrument


1. Accurately and quickly find the pipe leakage phenomenon


By picking up the noise and vibration data inside the pipeline, combined with advanced algorithms and analysis techniques, the pipe leakage hearer can quickly and accurately find the pipeline leakage point. Compared with the traditional visual observation and manual knocking methods, the pipe leakage listening instrument greatly improves the detection efficiency and reduces the leakage point missing.

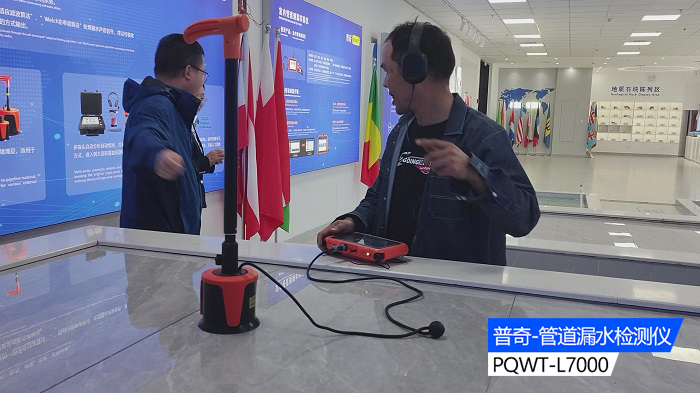

11122

1.Precise location of water leakage


Pipeline water leakage listening instrument can be based on the collected noise and vibration data, the pipeline leakage location for accurate positioning. The instrument is equipped with high sensitivity sensors and sophisticated signal processing circuitry, which can transform the weak noise and vibration signals into easily recognizable waveforms, so as to facilitate the user to determine the location of water leakage.


Third, improve the accuracy and sensitivity of the pipe leakage listening device


In order to better find the pipeline leakage problem, improve the accuracy and sensitivity of the pipeline leakage audiometer is very critical. Here are some common methods:


1. Select high-performance sensors


The sensor is one of the core components of the pipe leakage audiometer, which directly affects the accuracy and sensitivity of the detection results. The selection of high-performance sensors, such as microphones, piezoelectric crystals, etc., can effectively improve the instrument's ability to collect noise and vibration signals, which in turn improves detection accuracy and sensitivity.


1. Application of advanced algorithms and data processing technology


Through the application of advanced algorithms and data processing techniques, such as wavelet transform, neural network, etc., the collected noise and vibration data can be analyzed and processed in depth, so as to better extract the useful feature information and improve the instrument's ability to identify the leakage point.


1. Optimize the structure and design of the instrument


Optimizing the structure and design of the pipe leakage listening instrument can make it closer to the actual situation and improve the detection accuracy and sensitivity. For example, the design of the appropriate microphone and pickup position, in order to better capture the noise and vibration signals inside the pipeline; the use of anti-noise, vibration damping and other measures, in order to reduce the impact of external interference on the detection results.

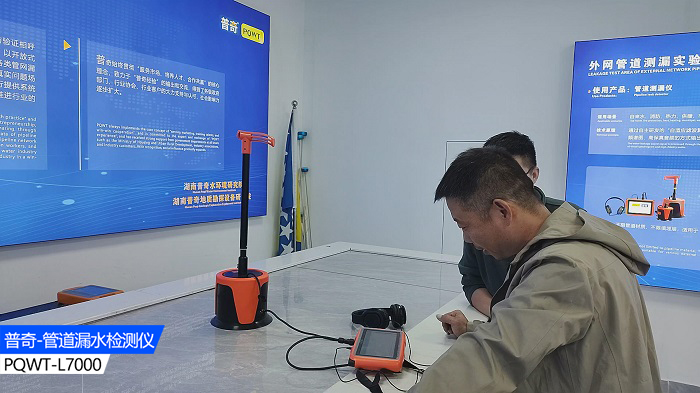

12311

IV. Precautions in practical application and cooperation with other detection methods


1. Precautions in practical application


In the application of pipeline leakage listening instrument, need to pay attention to the following points:


(1) Ensure that the instrument is in good working condition, regular maintenance and repair to ensure its accuracy and sensitivity.


(2) When carrying out the detection, minimize the interference of other noise and vibration sources, such as traffic and machinery.


(3) For large pipelines or complex environments, a combination of multiple detection methods can be used to improve detection efficiency and accuracy.


1. Cooperation with other detection methods


Pipeline leakage listening device can be used in conjunction with other detection methods in order to better solve the problem of pipeline leakage. For example:


(1) with the pressure test: by applying a certain pressure to the pipe inside the water or gas, and at the same time use the pipe leakage audiometer to detect any leakage or leakage sound to determine the location of the leakage.


(2) with the tracer test: add tracer to the pipe, and then use the pipe leakage listening device to detect the sound of tracer leakage to determine the location of the leak.


V. Summary


As an important tool for modern pipeline maintenance and management, pipeline leakage listening instrument has wide application value in water supply network, gas pipeline, industrial pipeline and other scenarios. This paper introduces the pipeline water leakage hearer from the definition, application scope and other aspects, and focuses on its main functions for in-depth analysis. By choosing high-performance sensors, applying advanced algorithms and data processing techniques, and optimizing the structure and design of the instrument, the accuracy and sensitivity of the pipe leakage audiometer can be further improved. In practical application, attention needs to be paid to the working condition of the instrument, reducing external interference and using it in conjunction with other detection methods. This will help to better detect and solve the pipeline leakage problem, and improve the efficiency and effectiveness of pipeline maintenance and management. With the continuous development of technology, the functions and applications of the pipe leakage listening instrument will be further improved and expanded to provide more convenience and support for future pipeline maintenance and management.
