Ground water detector: principles, applications and challenges

Views: 28     Author: Site Editor     Publish Time: 2023-05-06      Origin: Site


With the accelerated urbanization process, the construction of underground pipeline systems is becoming more and more common. However, during the use of pipelines, various reasons, such as aging materials and poor construction quality, can lead to water leakage problems, which can cause great harm to the ecological environment and people's daily life. In order to solve this problem, scientists have developed various ground water detector. this paper will introduce some of the most common types, including the principle, application and challenges faced.

1-(5)

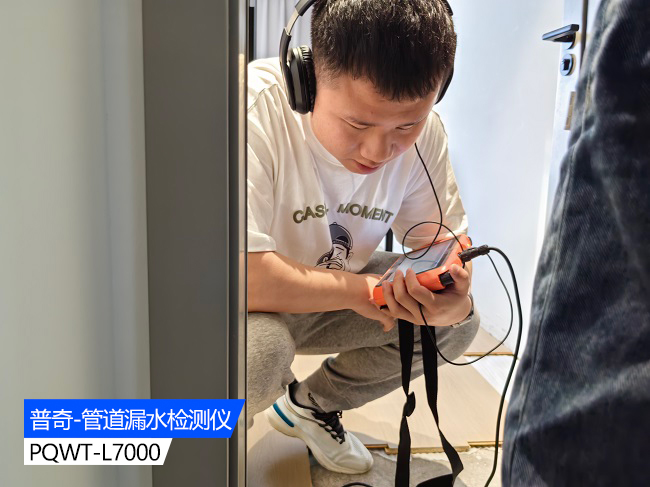

1. Acoustic water leak detector


The acoustic leak detector is one of the most common devices used to detect water leaks in pipes. It is based on the principle of sound propagation by placing a high-sensitivity microphone next to the pipe to detect the noise generated by the water flowing through the pipe wall. When there is water flowing inside the pipe, a certain amount of noise is generated due to the friction between water molecules. When a leak occurs in the pipe, it generates more noise due to pressure changes and an increase in water velocity, which is detected by the acoustic leak detector. This method does not require opening the pipe or excavating the ground and can quickly locate the leak.


2. Thermal imaging camera


A thermal imaging camera is a device that uses infrared radiation to detect the temperature distribution on the surface of an object, and it can detect leaks in pipes and underground facilities. As the leak will cause the ambient temperature around the pipe to change, when using a thermal imaging camera, the temperature in the area around the leak will be several degrees higher than other areas. This method needs to be used at night, and the best results can be obtained in low-light conditions.


3. Detection cable


A detection cable is a special cable that can detect if a pipe is leaking by laying it underground and connecting it to a detection instrument. When there is water flowing inside the pipe, it will make a certain electric field around the detection cable, and the detection instrument can detect these electric signals and calculate the location of the leak. This method has higher accuracy in locating the leak, but requires laying additional cables.

Ground water detector

Although the above three detection instruments have their advantages and disadvantages, they all face a number of challenges. For example:


1. environmental noise interference problem: in the city, the surrounding environment is very noisy, which may interfere with the detection results of the acoustic leak detector.


2. Temperature change problem: When the temperature under the ground changes a lot, the thermal imaging camera may misjudge the location of the pipe leakage point.


3. Electric field interference problems: In some cases, the surrounding electronic equipment may interfere with the signal of the detection cable, affecting the positioning accuracy.


To overcome these challenges, we need to combine different technical means and algorithms to solve the problem. For example, when using acoustic water leak detectors, filters and noise reduction algorithms can be used to reduce the impact of environmental noise; when using thermal imaging cameras, a variety of information such as ground temperature monitoring and weather forecasts can be combined to improve the accuracy of the location of water leaks; when using detection cables, multiple detection cables can be used and combined signals, thus reducing the impact of electric field interference.


To sum up, ground water detector is a very important technical tool, which can help us to quickly find the pipeline leakage point and repair the loopholes in time to protect the ecological environment and people's daily life. With the continuous progress and development of technology, it is believed that these instruments will become more and more popular and mature.
